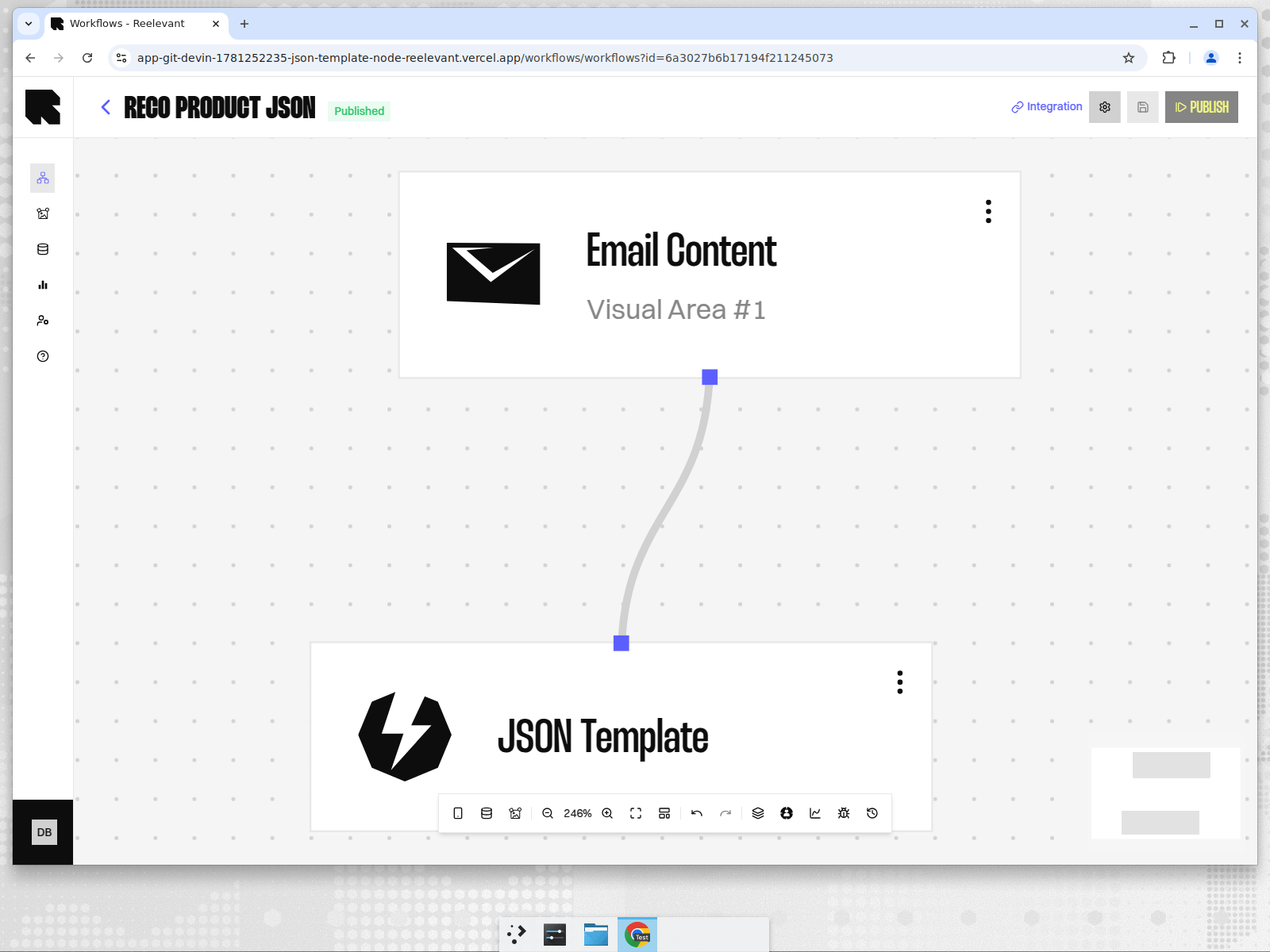

Workflow editor showing an Email Content node connected to a JSON Template output node

​
Overview

The JSON Template output node returns a structured JSON payload based on a pre-defined template. Unlike the JSON Format node (which gives raw, free-form JSON), JSON Template ensures a consistent, predictable schema across every execution. Each template declares named variables that are resolved at runtime from your workflow’s datasources. This means your frontend always receives the exact fields it expects — no guessing, no parsing surprises.
JSON Templates are ideal when your technical team defines the contract (the JSON shape) and your marketing team decides what data fills it. The schema stays stable; only the variable bindings change.

​
When to Use JSON Template vs JSON Format

CriteriaJSON TemplateJSON Format
Schema is defined upfrontYes — template enforces structureNo — free-form
Frontend knows what to expectYes — fields are predictableDepends on implementation
Non-technical users can configureYes — just select template & bind variablesRequires writing JSON manually
Cross-branch consistencyEnforced at publish timeNot enforced

​
Configuration

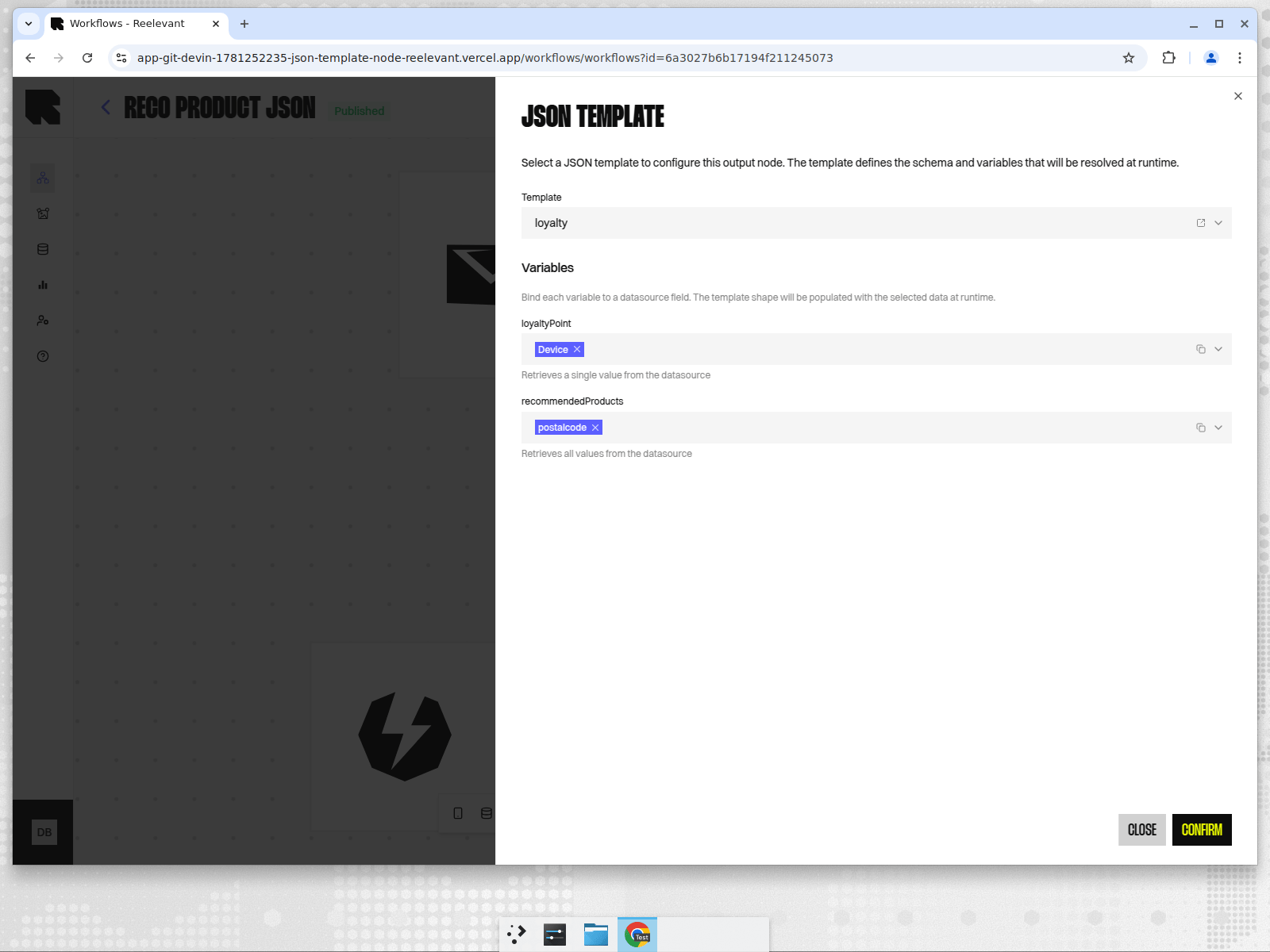

JSON Template node configuration drawer showing template selection and variable binding
1

Open the configuration drawer

Click the three-dot menu (⋮) on the JSON Template node in the canvas, then select Edit.
2

Select a template

Use the Template dropdown to choose from the available JSON Templates. Templates are created and managed by your engineering team in Workflow Settings.
3

Bind variables

Once a template is selected, its variables appear below. For each variable:
  • Click the Parameter value picker.
  • Select a datasource field from your workflow’s upstream data nodes.
Each variable has a description indicating whether it retrieves a single value (scalar) or all values (array) from the datasource.
4

Confirm

Click Confirm to save the configuration. The node is now ready for publishing.

​
Understanding Variables

Variables are the dynamic slots in your JSON template. When the workflow runs, each variable is replaced by real data from your datasources.

​
Scalar Variables (single value)

A scalar variable retrieves one value from the datasource — for example, a user’s loyalty points or a product name. The description reads: “Retrieves a single value from the datasource”.

​
Array Variables (all values)

An array variable retrieves all matching values — for example, a list of recommended products or recent purchases. The description reads: “Retrieves all values from the datasource”. The engine automatically iterates over all rows in the datasource.

​
How It Works

When the workflow executes and reaches a JSON Template output node:
  1. The engine loads the selected template’s definition (the JSON structure).
  2. For each variable in the template, it resolves the bound datasource field to a real value.
  3. The final JSON — with all variables filled in — is returned as the HTTP response.
The response is a 200 OK with Content-Type: application/json when data is available, or a 204 No Content when no personalisation applies.

​
Example

Suppose you want to personalise a product recommendation card. Your engineering team creates a JSON Template with this definition:
{
  "headline": { "type": "static", "value": "Recommended for you" },
  "productName": { "type": "dependency", "variable": "productName" },
  "loyaltyPoints": { "type": "dependency", "variable": "loyaltyPoints" }
}
Each field is either:
  • "type": "static" — a fixed value that never changes at runtime.
  • "type": "dependency" — a named variable that the marketing team binds to a datasource field.
The template declares two variables:
  • productName — isArray: true → retrieves all matching rows from the datasource
  • loyaltyPoints — isArray: false → retrieves a single value
At runtime, the engine resolves each variable from the bound datasource and returns a flat JSON response:
{
  "headline": "Recommended for you",
  "productName": ["Running Shoes", "Sports Watch"],
  "loyaltyPoints": 4250
}
Your frontend simply consumes these fields using its own components — the shape is always the same.

​
Best Practices

  • Let engineering define the template, marketing bind the variables. This separation keeps the schema stable while allowing marketing to experiment with different datasource bindings.
  • Use descriptive variable names. Names like productRecommendations or userLoyaltyScore make it clear what data each variable expects.
  • Test with real data. Use the Integration URL to call the workflow directly and verify the JSON output matches your frontend’s expectations.
  • One template per workflow. All JSON Template nodes in a workflow must reference the same template — this is enforced at publish time.

​
Feature Flag

The JSON Template output node requires the workflow_output_json-template feature flag to be enabled for your company. Contact your account manager or enable it in Workflow Settings > Feature Flags.
